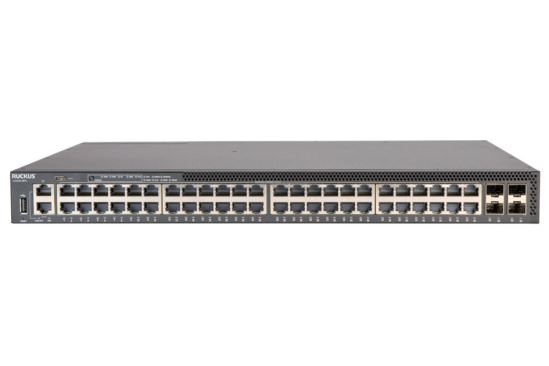

RUCKUS Networks ICX8200-48PF2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

RUCKUS Networks ICX8200-48PF2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: USB. Switching capacity: 296 Gbit/s. Power over Ethernet (PoE). Rack mounting
SKU: 6772066
Manufacturer part number: ICX8200-48PF2-E2
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack.
In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack.
In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution
Products specifications
Attribute nameAttribute value
Width17.3"
Depth14.6"
Height1.73"
Weight12.1 lbs
Switch TypeManaged
Power SourceAC/PoE
StackableYes
Heat dissipation389 BTU/h
MAC address filteringYes
Switching capacity296 Gbit/s
Power supply includedYes
IGMP snoopingYes
Forwarding rate220 Mpps
Loop protectionYes
SFP28 ports quantity4
Technical details
Product colorBlack
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)5 - 95 %
Operating altitude0 - 120000"
Non-operating altitude0 - 472440.9"
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Other features
Rack mountingYes
Performance
Console portUSB
Auto MDI/MDI-XYes
Network
10G supportYes
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresPrivate VLAN
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
