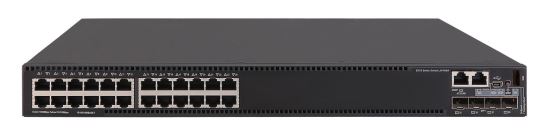

HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Managed L3 Gigabit Ethernet (10/100/1000) 1U

HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 32768 entries, Switching capacity: 288 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u. Rack mounting, Form factor: 1U

Manufacturers: Hewlett Packard Enterprise , HPE

SKU: 7565138

Manufacturer part number: JH145AR

GTIN: 0190017043265

The HPE FlexNetwork 5510 HI Switch Series comprises Gigabit Ethernet switches that deliver outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. With Intelligent Resilient Fabric (IRF) support and available dual power supplies, the HPE FlexNetwork 5510 HI Series Switch can deliver the highest levels of resiliency and manageability. In addition, the PoE+ models provide up to 1440 W of PoE+ power with the dual power supply configuration. Designed with four fixed 10GbE ports and supports additional modular uplinks, these switches can provide up to six 10 GbE uplink ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.

Products specifications

Attribute name	Attribute value
Width	17.3"
Depth	14.2"
Height	1.72"
Weight	16.5 lbs
Switch Type	Managed
Power Source	AC
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Switching capacity	288 Gbit/s
Throughput	214 Mpps
SFP+ module slots quantity	4
DHCP features	DHCP server, DHCP snooping, DHCPv6 snooping
Access Control List (ACL)	Yes
Latency (10 Gbps)	3 µs
Latency (1 Gbps)	5 µs
Authentication	MAC-based authentication
Airflow direction	Front-to-back airflow
Technical details
Flow control support	Yes
Ports & interfaces
USB 2.0 ports quantity	1
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Design
Form factor	1U
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 95 %
Power
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	107 W
Features
Internal memory	2048 MB
Full duplex	Yes
Memory type	SDRAM
Other features
Rack mounting	Yes
MAC address table	32768 entries
Performance
Console port	RJ-45
Networking standards	IEEE 802.1AX, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u
Auto MDI/MDI-X	Yes
Network
Jumbo frames support	Yes
10G support	Yes
Quality of Service (QoS) support	Yes
Auto-sensing	Yes
VLAN support	Yes
Data transmission
Packet buffer memory	4 MB
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Management features
Switch layer	L3
Memory
Flash memory	512 MB
Protocols
Routing protocols	BGP, BGP4+, OSPF, OSPFv3, RIP, RIPng
