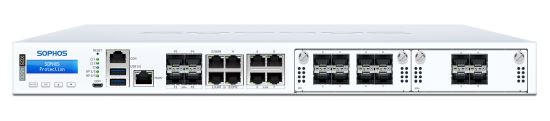

Sophos XGS 4500 hardware firewall 1U 80 Gbit/s

Sophos XGS 4500. Firewall throughput: 80 Gbit/s, Firewall (IMIX) throughput: 37 Gbit/s, VPN throughput: 75.55 Gbit/s. Ethernet LAN data rates: 1000,2500 Mbit/s. Form factor: 1U. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 3.7 - 7.4 A. Certification: CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI

Manufacturers: Sophos , Sophos, INC.

SKU: 6250870

Manufacturer part number: JG4E5CSUS

XGS Series Next-Gen Firewall Appliances
Distributed Edge: 1U Models
Mid-sized and distributed organizations in need of a versatile solution to power and protect their network will be well-served with our 1U models. These rackmount firewalls offer excellent performance, a diverse range of high-speed interfaces built-in, and a choice of add-on connectivity modules. Whether your priority is ensuring maximum uptime for your SD-WAN links, securely connecting your remote users, or protecting the network in a growing organization, you can tailor them to your dynamic environment.

All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.

Products specifications

Attribute name	Attribute value
Width	17.2"
Depth	20.1"
Height	1.73"
Weight	21.4 lbs
VPN tunnels quantity	8500
SFP+ module slots quantity	4
Firewall latency	4 µs
Firewall (IMIX) throughput	37 Gbit/s
Threat protection throughput	8650 Mbit/s
Xstream SSL decryption + Threat protection	10600 Mbit/s
Packaging data
Package weight	35.1 lbs
Ports & interfaces
Ethernet LAN (RJ-45) ports	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Design
Certification	CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI
Form factor	1U
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Power
AC input frequency	50/60 Hz
AC input voltage	100-240 V
Power consumption (idle)	151 W
Power consumption (max)	268.35 W
Features
Input current	3.7 - 7.4 A
Other features
Rack mounting	Yes
Performance
Concurrent connections	17200
Network
Ethernet LAN data rates	1000,2500 Mbit/s
Data transmission
Firewall throughput	80 Gbit/s
VPN throughput	75.55 Gbit/s
IPS/IDS throughput	36500 Mbit/s

Sophos XGS 4500 hardware firewall 1U 80 Gbit/s
